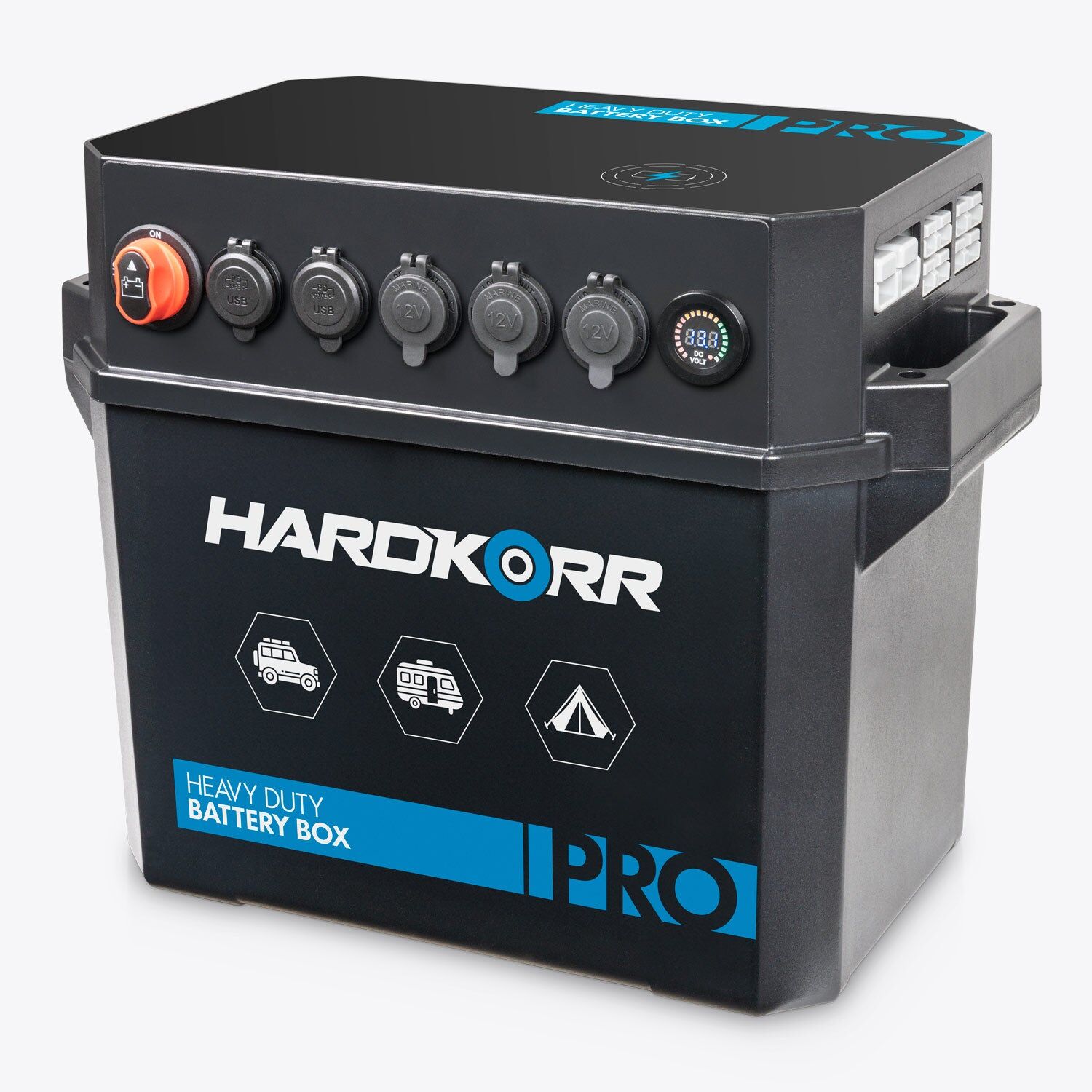

The Heavy Duty Battery Box Pro model gives you more ways to utilise your auxiliary battery power. It comes with an integrated wireless charger, and a wide array of ports, plugs and sockets to give you the power you need, however you need it.

Designed for convenience, the Battery Box Pro is DC-DC ready, featuring dedicated solar and DC-DC inputs. Installing a DC-DC Charger will allow you to charge and maintain your battery via solar panels or your vehicle’s alternator, ensuring you’re never limited to home charging.

For a dual battery setup, simply connect your primary power source to one of the 50A Anderson-style plugs, and the auxiliary battery’s charge status and voltage will appear on the digital display. Having extra power on your next trip couldn’t be easier.

Features

  • Constructed from UL 94V-0 compliant fire-resistant ABS plastic
  • Multiple port types allows you to connect a range of devices
  • Easily connect a DC/DC charger or solar panel with regulator to charge the battery, or use the optional 50A Voltage-Sensitive Relay (VSR) and 40A wiring kit to charge directly from crank battery
  • Can be used to jump start vehicles using our optional 175A Anderson jumper cable set
  • Can be used to run up to a 1500W Inverter using our optional Inverter cable kit
  • All ports are recessed into the body to reduce likelihood of damage
  • Wirelss charging pad (max. 15W)
  • Easily see battery status with digital display

Specifications

  • Materials ABS plastic (UL 94V-0 compliant)
  • Box dimensions 420mm (l) x 240mm (w) x 340mm (h)
  • Max. battery dimensions 330(L) x 180(W) x 240(H) mm
  • Max. battery weight 35.0kg
  • Suitable battery types Any deep cycle (Lithium, AGM, Calcium, Wet, Gel)
  • Charge method via Anderson plug input or optional VSR
  • Ports In/Out 2x USB-C
  • 2x Quick-charge USB
  • 3x Cigarette sockets
  • 4x 50A Anderson-style
  • 1x 175A Anderson-style
  • 1x Wireless charging pad (max. 15W)
  • 1x DC-DC input
  • 1x Solar input
  • Cable gauge 3AWG (25mm2) to battery and 175A Anderson port
  • 10AWG (6mm2) to 50A Anderson ports
  • 14AWG (2.5mm2) to cig & USB ports
  • Ratings 200A isolator switch, 2x 50A auto-reset breakers (Anderson plugs), 2x 30A blade fuse (USB and Cig ports)
  • Operating temperature -10°C to 60°C
  • Weight 3.9kg
SKU HKPCHGBOX2
Barcode # 9350466005608
Brand HardKorr
