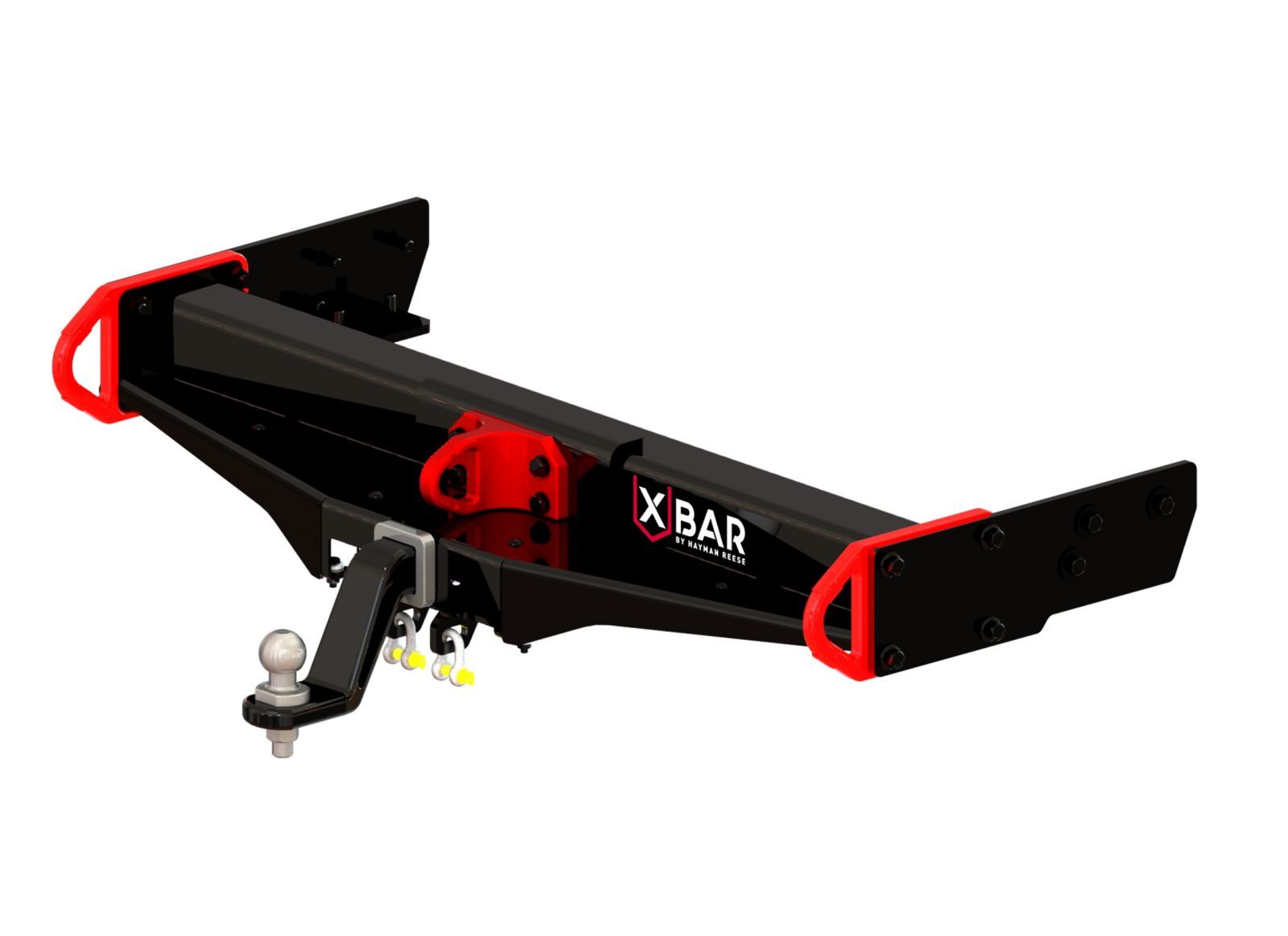

This Hayman Reese X-Bar Towbar is designed to fit the Mazda Bt-50 Cab Chassis from 15/07/2020 to current.
It is capable of towing up to 3500kg and has a towball load rating of 350kg.

Vehicle Details:ISUZU D-MAX/MAZ BT50 TF X-BAR C/C(2 BOX) | 15/07/2020 - current
Towing Hints: Hayman Reese X-BAR Suits TF series MAZDA BT50/ISUZU DMAX. Fitment of this towbar allows/needs removal of plastic rear bumper (Standard on all Cab Chassis variants) and will require vehicle Blindspot/Cross traffic sensors to be relocated. Sensor relocation kit 08409 enables correct relocation of sensors when towbar is fitted.
Wiring Hints: For vehicles equipped with RPA, 04943 normally open (N/O) read switch tail is required to dissable.

The Hayman Reese X Bar is the ultimate companion for rugged off-road adventures, meticulously engineered to conquer any terrain with confidence. Built tough to withstand the most demanding conditions, the X Bar sets a new standard for what a tow bar can be.

Featuring a robust construction and a design tailored for off-road prowess, the X Bar offers an enhanced departure angle, ensuring you can navigate steep inclines and rough terrain with ease. Whether traversing rocky trails or forging through muddy tracks, this towbar is primed to tackle any challenge that comes your way.

But the X Bar isn't just about towing; it's a lifeline in tricky situations. With three strategically positioned recovery points, you can count on the X Bar to pull you out of sticky predicaments when the going gets tough. Whether you find yourself mired in mud or stranded on uneven terrain, these rated recovery points provide the anchor you need to extract yourself from any situation safely.

Maximum Clearance

The Hayman Reese X-Bar sits higher on the vehicle, up to 100 mm vertically, offering improved departure angles of 5 degrees compared with some OEM and other aftermarket towbars.

Recovery Rated

The X-Bar provides a purpose designed and rated rear vehicle recovery system encompassed in a fully Australian Design Rules (ADR) compliant towbar and is rated to 8,000 kg.

Superior Strength

The Hayman Reese X-Bar features increased thickness side arms for better rigidity, custom forged 700-grade steel recovery points, and high-tensile Australian Standard Grade 10.9 fasteners.

Features

  • Twin protected trailer socket mount points (7 or 12 pin flat & Anderson plug)
  • Full ADR compliance, allowing for a 50mm height increase from suspension or tyre upgrades
  • SmartPin hitch pin with integrated anti-rattle feature
  • Maximum vehicle towing capacity across all fitments
  • Comes complete with:
    • Hayman Reese vehicle specific SmartClick wiring harness
    • Flat sided superior finish tow ball
    • Rated D shackles
    • Metalshield, Hayman Reese’s premium eCoat & powder-coat finish
    • Hayman Reese Limited Lifetime Warranty
    • Tested to Australian Standards AS/4177 and ADR 62/02 in a NATA accredited laboratory
    • Tested to industry standards for Static Overload, Durability and Recovery Overload.
SKU 03365XWKIT-2
Brand Hayman Reese
