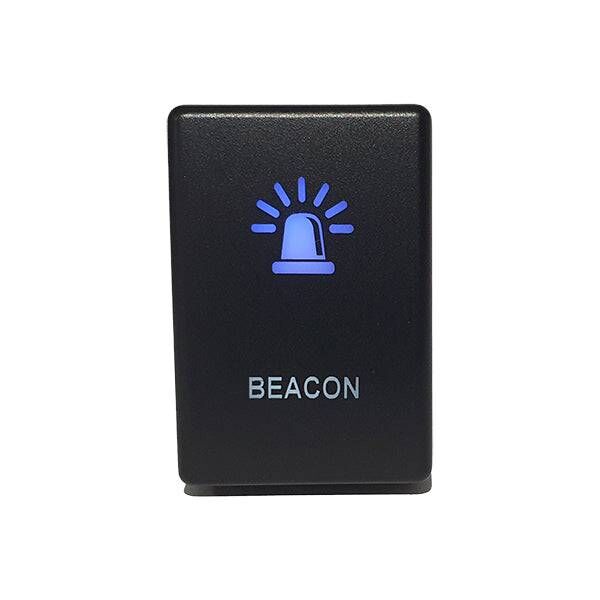

The text illuminates white via the dash light circuit. Once the switch is pushed on, the upper icon window illuminates blue.

This factory-style work lights switch is designed specifically to fit 3rd Generation vehicles only and will fit into the original dashboard, (right-hand side of the steering wheel) without any modification.

Specifications include:

  • Switch cut out size is 20mm x 31mm
  • Housing material black PVC
  • Single switch input
  • Dual LED illumination
  • Suitable for positive switched vehicles only
  • Harness included (300mm in length)
  • Current rating 3 amps @ 12v (must be used in conjunction with a relay)


Harness compatibility:

Compatible with Lightforce Single Switch 8 Pin Adaptor # SWADP4. This enables direct connection to Lightforce Harness part number STRIKERLEDHARN (Striker LED Harness).

SKU CBSWDC3B-1
Barcode # 9335712035158
Brand Lightforce
