The Lightforce Headlight Patch Harness for the Mitsubishi Triton MQ (HID Xenon) with factory fitted HID Headlights allows for easy plug and play integration into the existing factory headlight connector that are located on the back of each side of the vehicle’s headlight assemblies.

It uses the factory connection point on the back of the headlight assembly. You no longer need to put a hole in the dust cover or splice a wire into the factory harness for auxiliary driving lights.

Simply:

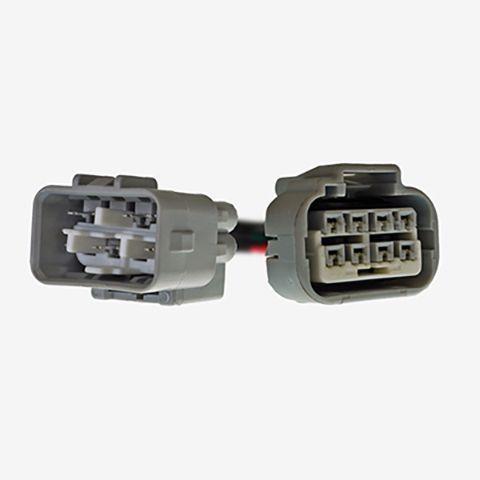

Remove the existing OEM 8 pin connector from the back of the headlight (left or right side) there is a locking tab that must be depressed while removing the connector.

Fit the corresponding new connector to the factory connector that has just been removed.

Fit the remaining new connector to the original factory connector affixed to the headlight assembly.

Then connect the corresponding connectors from anyone of our listed compatible wiring harnesses.

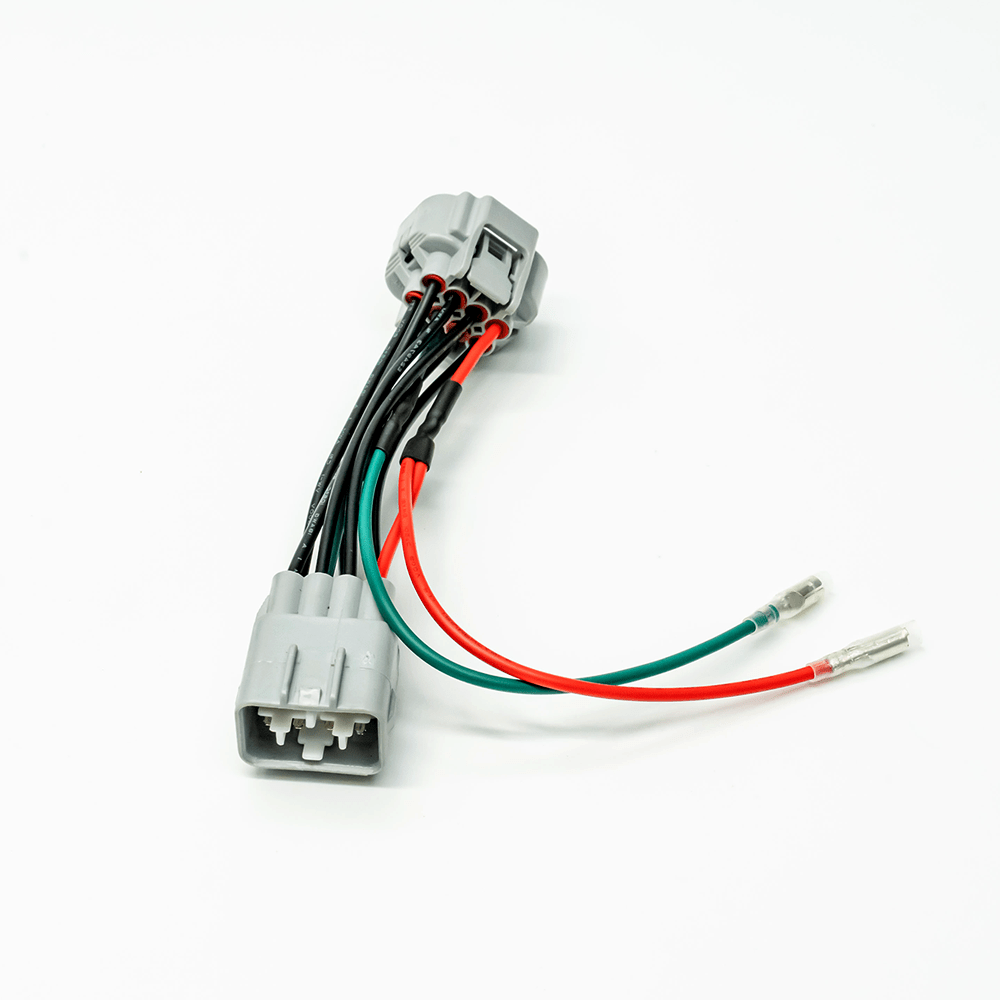

Red wire is from the vehicles positive high beam circuit and is used to trigger the positive signal on an auxiliary relay for driving lights.

Green wire is from the vehicles negative circuit and is used to trigger the negative signal on an auxiliary relay for driving lights.

Both red & green wires must be connected.

Compatible with the Following Harnesses:

  • # LFDLHTS / LFDLHTS2 - Genesis / Venom
  • # LFDLHDS - HTX MK1 / MK2
  • # LFDLHSS - 12V Single Switching harness
  • # LFLBHVSR/LFLBHVDR- Viper Light Bar
  • # LFDLHBEAST-U BEAST LED Driving Lights Wiring Kit – Universal Fitment

* If your vehicle has standard halogen headlights use the HB3 adaptor that is included with the light specific wiring harnesses.

SKU CBMQ8PIN
Barcode # 9335712032904
Brand Lightforce
