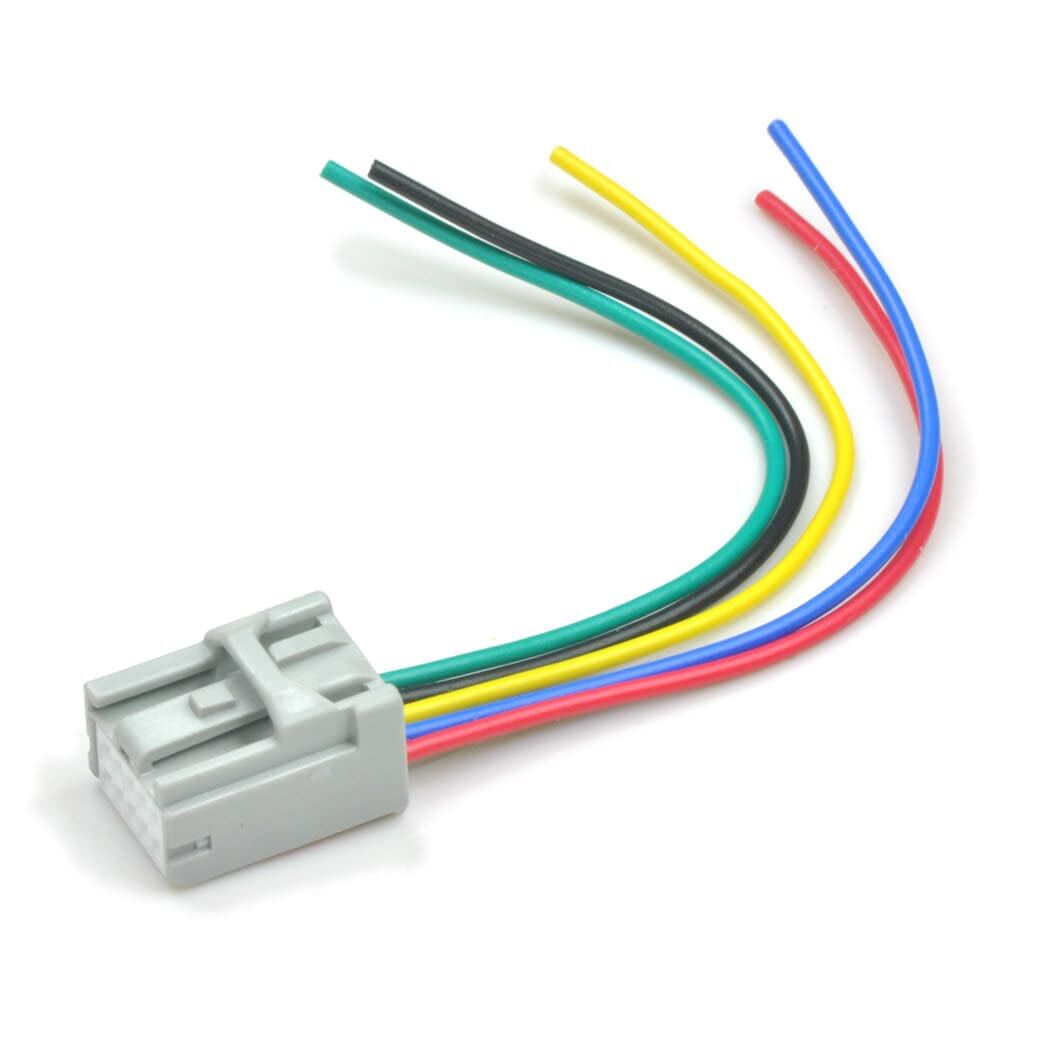

Designed for use with the OEM driving light switch found in the Ford Ranger PX1 and second-generation Mazda BT-50 (October 2011 onwards).

Wiring Instructions:

  • Red wire – Activates the blue indicator on the switch when in the ON position. To enable this function, connect to the yellow wire.
  • Blue wire – 12V input from the high beam circuit.
  • Yellow wire – 12V switched output. Connect to the red wire, then connect to relay terminal 87.
  • Black wire – Connect to earth (negative).
  • Green wire – Connect to the 12V dash light circuit (illuminates the Roo logo or icon).
SKU CBSWRC
Barcode # 9335712025777
Brand Lightforce
