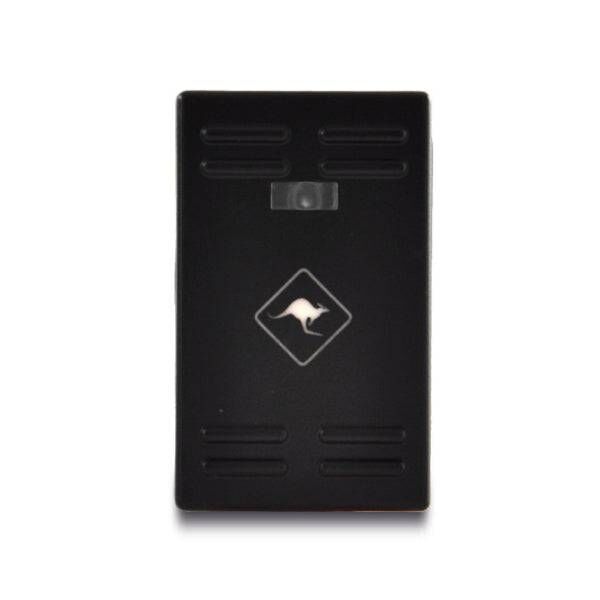

The Roo logo illuminates white when connected to the dash light circuit. When the switch is activated, the upper clear window lights up blue for clear indication.

Features:

  • Single switched input
  • LED illumination
  • Suitable for positive-switched vehicles only
  • Includes 300mm wiring harness
  • Current rating: 3A @ 12V

Installation – Removing the Switch Blank (Business Card Holder):

  1. Remove the fuse panel cover located beside the driver’s side door.
  2. Carefully dislodge the lower trim panel adjacent to the fuse panel.
  3. This will provide access to the rear of the switch blank (business card holder).
  4. Apply light pressure to the top and bottom of the switch blank to release it from the dashboard.

Important:
Do not attempt to remove the switch blank using a screwdriver, as this may damage the dashboard surface.

SKU CBSWR-1
Barcode # 9335712025753
Brand Lightforce
